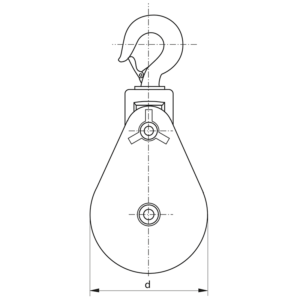

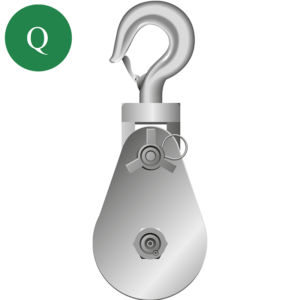

Snatch Block with Hook
| MATERIAL | Carbon steel, fitted with roller bearings, except for blocks under WLL 4 tons, these are equipped with phospher bronze bushes |
|---|---|
| SAFETY FACTOR | MBL equals 4 x WLL |
| FINISH | Painted blue |
| CERTIFICATION | As standard; EC Declaration of Conformity Blocks have been individually proof tested |
| NOTE | The Working Load Limit is shown on the head fitting Measurements are for guidance only and may vary |
Description
| Working | Diameter | Diameter | Length | Width | Width | Product | Weight |
|---|---|---|---|---|---|---|---|
| Load Limit | Wire Rope | Outside Sheave | Outside | Code | Each | ||
| a | b | c | d | ||||
| t | mm | mm | mm | mm | mm | kg | |
| 2 | 7 - 9 | 75 | 290 | 70 | 80 | 82501 | 4.00 |
| 4 | 10 - 12 | 114 | 350 | 70 | 121 | 82502 | 5.30 |
| 8 | 16 | 152 | 490 | 93 | 159 | 82504 | 14.00 |
| 8 | 20 - 22 | 152 | 490 | 93 | 159 | 82503 | 15.00 |
| 8 | 20 - 22 | 203 | 540 | 93 | 210 | 82505 | 20.00 |
| 12 | 20 - 22 | 254 | 690 | 114 | 264 | 82506 | 36.00 |
| 15 | 24 - 26 | 305 | 780 | 130 | 314 | 82507 | 58.00 |
